ISO9001 Flex PCB Board Two Sided Pcb Circuit FR4 For Electronic
Flex PCB Board 2 Layer Flexible Circuits Double Layer PCB Bend
Easily Small Electronic Application
2 Layer Flexible Circuits

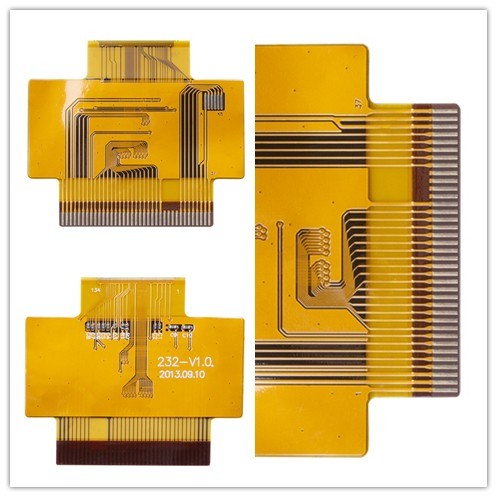

Flexible printed circuits are circuit boards that have the ability
to bend or twist. From this assertion, it is obvious that they are
distinguished by a flexible construction. That is why electronic
engineers and designers use them in applications that demand for
their qualities. They are also referred to as flex circuits and are mostly used in small electronic applications. Since they are characterized by their ability to
bend, flexible printed circuits are made of flexible substrate such
as polyimide. Another important quality of flexible printed
circuits is that they have superior heat dissipation than printed
circuit boards. It is this quality that makes it possible for the
electronics that use it to stay in quality condition for a long
time.
HSX products cover 1~32L FR4 PCB, IMS PCB,HDI Boards, high
frequency PTFE boards and Rigid-flex boards etc. It provides
flexible quick turn production services (12 hours to72 hours), as
well as small volume to big volume PCB manufacturing.Products are
widely used in high-tech fields such as communications, power
supplies, computer networks, digital products, industrial control,
science and education, medical devices, and aerospace.
| FPC Technology Capability |
Attribute (All dimensions are mils unless
otherwise specified) | Mass Production (Yield≥
80%,Cpk≥1.33) | Small Amount(Yield≥60%, Key
Specification Yield≥80% | Sample |
| FPC(yes/no) | yes | yes | yes |
| Layer count/Structure, Max. | 2 | 4 | 6 |
| Size(L×W), Max. | 550mm*250mm | 550mm*250mm | 700mm*250mm |
| Nominal thickness (mm) | 0.1~0.5 | 0.1~0.5 | 0.1~0.8 |
| Thickness tolerance | ±10%(>0.3mm)/±0.03mm(≤0.3mm) | ±10%(>0.3mm)/±0.03mm(≤0.3mm) | ±10%(>0.3mm)/±0.03mm(≤0.3mm) |
| Surface finish type | ENIGENEPIGOPSI-SilverI-Tin HASLHard Gold | ENIGENEPIGOPSI-SilverI-Tin HASLHard Gold | ENIGENEPIGOPSI-SilverI-Tin HASLHard Gold |
| Soft ENIG(yes/no) | no | no | no |
| Base material type | PI | PI | PILCPTK |
| Coverlay thickness (um) | 28/50/60/80 | 28/50/60/80 | 28/50/60/80 |
| Adhesive thickness (um) | 25/40/50/65 | 25/40/50/65 | 25/40/50/65 |
| Copper thickness, Min./Max. (um) | 12-70 | 12-70 | 12-70 |
| Base material thickness, Min./Max. (um) | 25-75 | 25-75 | 25-100 |
| Mechanical drilled thru-hole size (DHS), Min. | 0.15 | 0.15 | 0.15 |
| Plating aspect ratio, Max. | 3:1 | 3:1 | 5:1 |
| Pad size, Min. | With through hole:0.4mm
Without through hole:0.2mm | With through hole:0.4mm
Without through hole:0.2mm | With through hole:0.3mm
Without through hole:0.2mm |
| Pad size tolerance | 20% | 20% | 10% |
| Pad to pad space, Min. | 4mil | 4mil | 4mil |
| Pad to outline tolerance | ±3mil | ±3mil | ±2mil |
| Pattern location accurancy | ±3mil | ±3mil | ±2mil |
| Pattern location accurancy from top side to bottom | ±3mil | ±3mil | ±2mil |
| Laser via hole diameter/pad, Min. | 4/12mil | 4/10mil | 4/10mil |
| Outerlayer(Hoz+plating) line width/space, Min. | 3/3mil | 3/3mil | 2/2mil |
| Innerlayer(Hoz) line width/space, Min. | 3/3mil | 3/3mil | 2/2mil |
| Inner line width tolerance | ±10% | ±10% | ±10% |
| Outerlayer registration, Min. (Pad diameter = DHS + X) | DHS + 8 | DHS + 8 | DHS + 6 |
| Innerlayer registration, Min. (Pad diameter = DHS + X)(L≤4 layer) | DHS + 10 | DHS + 10 | DHS + 8 |
| Laser via hole pitch, Min. | 0.40mm | 0.40mm | 0.35mm |
| Mechanical hole pitch, Min. | 0.50mm | 0.50mm | 0.40mm |
| Drilled hole position tolerance | ±2mil | ±2mil | ±2mil |
| Hole size tolerance | ±2mil | ±2mil | ±2mil |
| Location accurancy from tooling hole(PTH&NPTH) to pad | ±3mil | ±3mil | ±2mil |
| Location accurancy from tooling hole(PTH&NPTH) to outline | ±3mil | ±3mil | ±2mil |
| Outline size tolerance | ±2mil | ±2mil | ±2mil |
| LPI registration/dam, Min. | 2mil/4mil | 2mil/4mil | 2mil/3mil |
| LPI dam on CVL | 8mil | 8mil | 8mil |
| Coverlay open window/dam | Φ0.5mm/0.3mm | Φ0.5mm/0.3mm | Φ0.3mm/0.2mm |
| Coverlay registration/Resin flow | 4mil | 4mil | 2mil |
| Stifferness material | FR4/PI/Steel | FR4/PI/Steel | FR4/PI/Steel |
| Stifferness dam, Min. | 12mil | 12mil | 8mil |
| Stifferness registration/Resin flow | 8mil/4mil | 8mil/4mil | 4mil/2mil |
| Impedance tolerance | 10% | 10% | 5% |
| Thermal reliability(LPI, FCCL, CVL) | 288°/10s/3times | 288°/10s/3times | 288°/10s/3times |
| Qualified material and structure UL | PI | PI | PI |
FAQ:
Q1:What is your minimum order quantity?
A: No MOQ.The quantity will only affect the price. Please contact
us for RFQ.
Q2:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by
DHL,UPS,FedEx door to door service, we could use your shipping
account to do collection or use our account to ship in DDU (import
duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by
ship or by air to save freight cost. Of course, if you have your
own forwarder, we may contact them for dealing with your shipment.
Q3:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and
5000types/month.
Q4:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran,
Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India
etc.
