Blue Solder Mask Double Sided PCB Board High TG TG170 S1000-2

Double Sided PCB Epoxy Plugged Via Blue Solder Mask High TG TG170 S1000-2 Double Sided Printed Circuit Boards

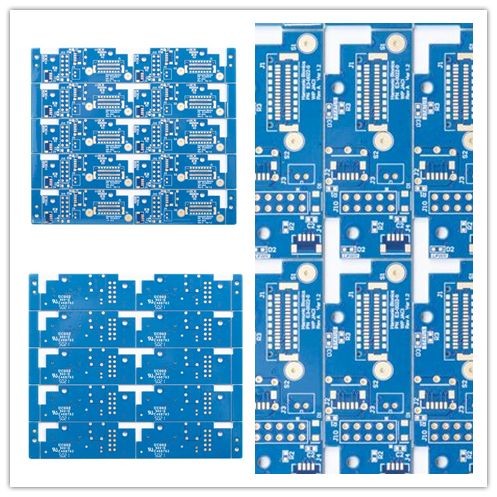

Double Sided Blue Printed Circuit Board

HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.

Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace. HSX owns high-educated and experienced team and advanced production equipment.

The panel size of HSX factory's capability is max 740x500mm, but when the panel size is larger than 600mm, it will need to be review at first. And the minimum panel size that we can reach is 5*5mm.

The PCB thickness we can reach is from 0.2mm to 4.0mm, when the board thickness is lower than 0.2mm, or higher than 4mm, the board will need to be evaluated at first. (PS. When board thickness is equal to or less than 0.6mm, it will not apply for HASL surface finished)

The inner and outer layer's base copper thickness is smallest 0.3/0.5oz, and max 3oz.

0.15mm is factory's minumun hole size capability, when the hole size is smaller than 0.15mm, the board will need to be reviewed at first.

The colors of solder resist contain green,matt green,blue,matt blue,black,matt black,yellow,red,white, and as customer specify.

The colors of leged contain white, black and as customer specify.

FAQ:

Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.

Q2:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.

Q3:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q4:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.

Q5:What is your standard lead time for production?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. HSX Circuit provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. Its products covers 1~32L FR-4 PCB, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

Under the support of high-educated and experienced team and advanced production equipment, HSX Circuit has won great reputation from the global markets because of its professional services and high quality products.

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
