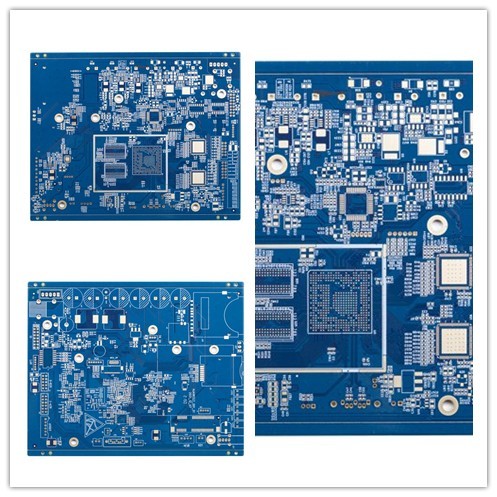

Blue Solder Mask Quick Turn PCB Boards Prototypes 4.8mil 1.6mm

Quick Turn PCB Boards Impedance Control Communication Devices Blue Solder Mask Quick Prototypes

4L Impedance Control Fast Turn Printed Circuit Board

Max layers is 32layer (≥20 layer needs to review)

The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review the board

Min finish panel size is 5 * 5mm
PCB material includes PI +FR4,FR4, Rogers, etch
PCB thickness capability is 0.2~4.0mm(needs to review when <0.2 mm, or >4 mm ) (and can not do HASL surface with board thickness </=0.6mm)

Copper thickness of inner and outer base copper capability: Min 0.3/0.5oz,Max 3oz, advance 4-6oz

Bow and twist tolerance: 0.075%

Min. hole size: 0.15mm(need to review the board if smaller than 0.15 mm )

HDI Min drill hole capability: 0.08-0.10MM
PCB track/gap capability: 3mil(0.075mm)
PCB outline method: Routing/V-CUT/Punching

Solder mask thickness capability: standard 15-20um; Advanced: 35um

Min solder mask bridge width capability: green 4mil,other colour 4.8mil

Solder mask filling holes capability: 0.1-0.5mm

The color of solder mask covers green, matt green, blue, matt blue, black, matt black, yellow, red, white, etc
PCB silkscreen includes white, Black and as your request

Peelable mask thickness capability: 500-1000um
Oxidation film of OSP capability: 0.2-0.5um

FAQ:

Q1: Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.

Q2: What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)

Q3: Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.

Q4: If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q5: What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days

Q6: What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. HSX Circuit provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. Its products covers 1~32L FR-4 PCB, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

Under the support of high-educated and experienced team and advanced production equipment, HSX Circuit has won great reputation from the global markets because of its professional services and high quality products.

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
