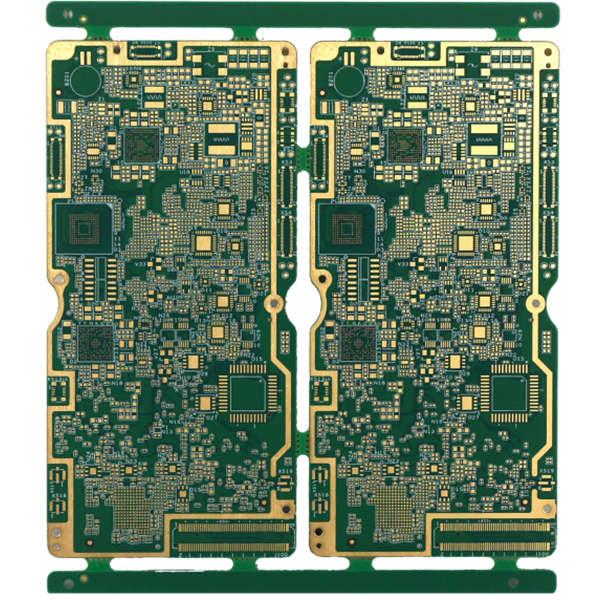

ENIG 2u 6 Layer Multilayer Printed Circuit Board 2.4mm Green Solder
Mask
Multilayer Printed Circuit Board Printed Circuit Board Assembly
Custom Printed Circuit Board PCB Assembly
6L Rigid Printed Circuit Board
The max layers is 32layer,needs to review if ≥20 layer.
The max finish panel size is 740* 500 MM, but if >600 MM, needs
to review the board at first.
The Minimum panel size is 5 * 5mm.
PCB raw materials include PI +FR4,FR4, Rogers,Halogen-free, High TG
materials and so on.
PCB thickness capability is from 0.2~4.0mm, if thickness less than
0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will
need to review.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size less than 0.15mm,
will need to confirm.
The max hole size is 6.0mm, if hole size more than 6mm, will need
to use milling to enlarge holes.
Min space in inner layer(one-sided): 4～8L(include): sample: 4 mil;
small volume: 4.5 mil;
8~12L(include): sample: 5 mil; small volume: 5.5 mil
12～18L(include): sample: 6 mil; small volume: 6.5 mil
PCB solder mask Color: Green, Matt green,Blue, Matt blue, Black,
Matt black, Yellow, Red, White,etc
PCB silkscreen color: White, Black, etc
PCB surface: HASL lead free, ENIG, Immersion Sn, OSP, Selective
ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.
| PCB Layer | 6L Rigid printed circuit board |
| PCB surface | ENIG 2U |
| PCB material | FR4, TG170+ Rogers |
| PCB thickness | 2.4mm finished |
| Min. hole size | 0.25mm |
| PCB solder mask | Green |
| PCB Legend | White |
| PCB Copper | 2/2/2/2/2/2oz finished |
| Special request | Resin plugged hole and plating edge, many BGAs |
| Application | Communications, Industry/comsumer Electronic. |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype
order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including
layer, board thickness, copper thickness, surface treatment, solder
mask and silkscreen color, special request if any, demand quantity,
etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you have?
T/T
