1.6mm HASL OSP Multi Layer Pcb Board FR4 Halogen Free Green Solder Mask

Multilayer Printed Circuit Board Electronics Circuit Board Circuit Board Components FR4 Printed Circuit Board

PCB Printed Circuit Board(FR4,4L)

Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.

The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.

The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...

Blind and buried holes lamination press times: Press with same core ≤3times (>3 times needs to review)
PCB thickness capability is from 0.2~4.0mm, if thickness is less than 0.2 mm, or more than 4 mm, will need to review it at first.

PCB copper thickness capability: Inner layer≤ 6 OZ( but copper thickness ≥5 OZ for 4L,≥4OZ for 6L,≥3OZfor 8L and above shall be reviewed)

Outer layer copper: ≤ 10 OZ(≥5 OZ needs to review)

Bow and twist tolerance is 0.075%.

Min hole size: 1) If board thickness ≤2.0mm, min hole size 0.20mm. If Board thickness>2.0mm , min hole size: aspect ratio≤10(for drill bit)

2) If board thickness≤0.8mm, min hole size 0.10mm. If board thickness≤1.2mm, min hole size 0.15mm

Solder mask color: Green, matt green,blue, matt blue, black, matt black, yellow, red, white, and as your request.
Silkscreen color: White, black and as your request
Surface finished: HASL, LF-HASL, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Plating hard gold,etc.

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. HSX Circuit provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. Its products covers 1~32L FR-4 PCB, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

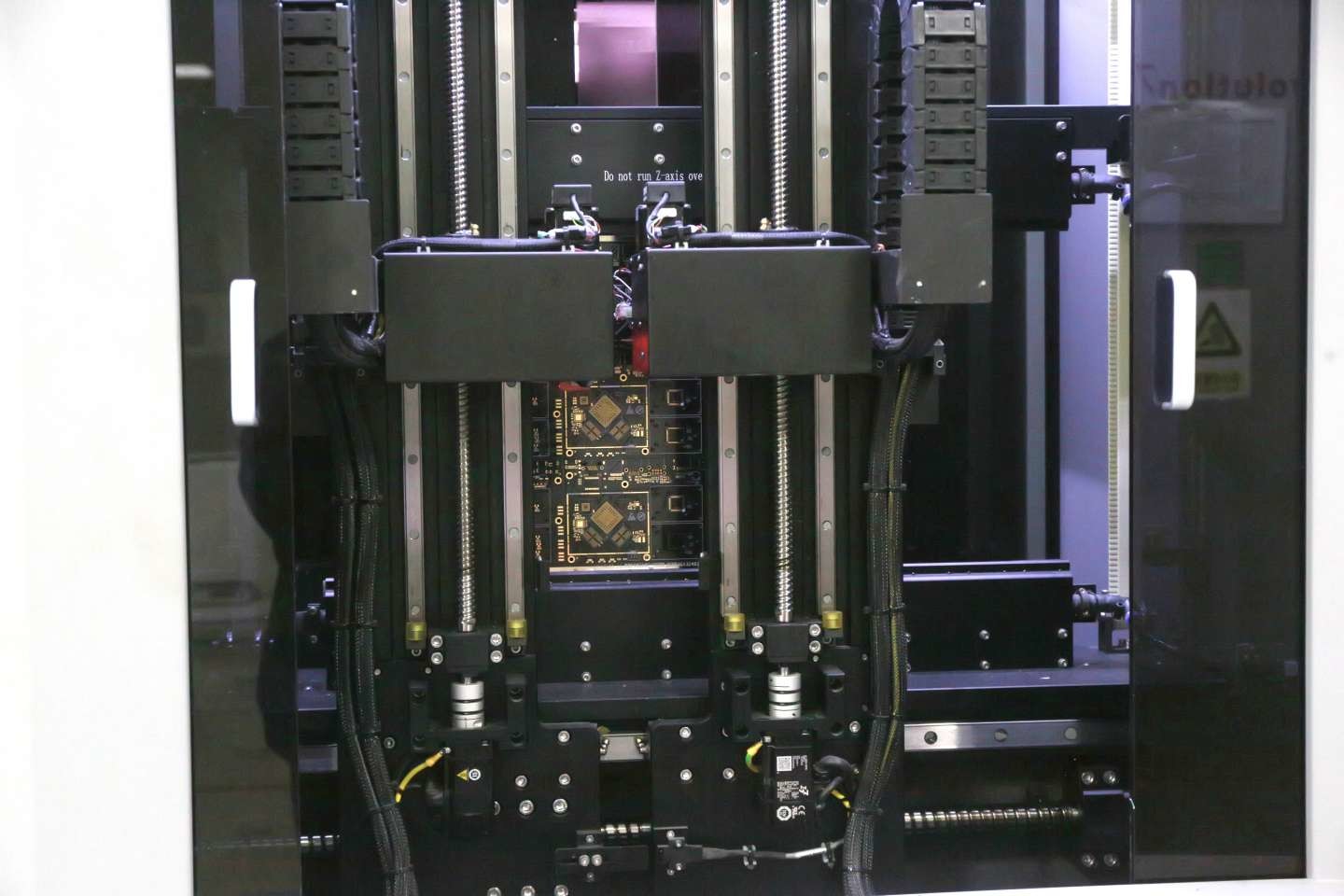

Under the support of high-educated and experienced team and advanced production equipment, HSX Circuit has won great reputation from the global markets because of its professional services and high quality products.

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
