HASL OSP Multilayer Flex Pcb Prototype Halogen Free Immersion Tin

Rigid Flex PCB Rigid Flex PCB Design Multilayer Flex PCB Flex PCBs Multilayer Flex Circuits Flex Circuit Prototype

Multilayer flex rigid printed circuit board

PCB Layer: Single layer, double sided, multi-layer

PCB material: FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled, Polyimide...

Surface finished: Immersion Tin, Immersion Silver, ENIG, ENEPIG, HASL, OSP, Hard Gold, Soft Gold(mostly ENIG)

Copper thickness: 1/3~5oz

Smasllest drilling size: 0.15mm

smallest trace/space:3mil/3mil

Solder mask: PI solder mask coverlay film or PET solder mask covelay film lamination( Black, Red, Yellow and Green, etc)

Legend: White, Black and as customer requested

Application: telecommunication product, aerospace field, military products and medical fields

Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.

Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.

The advantages of rigid flex board includes:

1) ruducing products' weight

2) temperature resistance is excellent

3) being more flexible

4) with good reliability

Factory's introduction:

HSX products cover 1~32L FR-4 printed circuit boards, IMS printed circuit boards,HDI printed circuit boards, high frequency PTFE boards and rigidflex boards. And we provide flexible quikturn/fast services (12 hours to 72 hours), as well as small volume to big volume PCB manufacturing.

Products are widely used in high-tech fields, lilke communication industry, power supplies industry, comsumer electronic industry, industrial control, medical devices, and so on. We own high-educated and experienced PCB team and advanced production equipments.

Max layers: 32layer (≥20 layer needs to review)

Max finish panel size: 740* 500 MM(>600 MM needs to review)

Min finish panel size: 5 * 5mm

PCB material: PI +FR4,FR4, Rogers,Halogen-free, High TG and heavy copper

PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review)

PCB copper thickness: H~5oz

Bow and twist: 0.075%

Min. hole size: 0.15mm(＜0.15 mm needs to review)

Max hole size: 6.0mm(>6mm, use milling to enlarge holes)

HDI Min drill hole: 0.08-0.10MM

Min space in inner layer(one-sided): 4～8L(include): sample: 4 mil; small volume: 4.5 mil;

8~12L(include): sample: 5 mil; small volume: 5.5 mil

12～18L(include): sample: 6 mil; small volume: 6.5 mil

PCB solder mask: Green, Matt green,Blue, Matt blue, Black, Matt black, Yellow, Red, White,etc

PCB silkscreen: White, Black, etc

PCB surface: HASL lead free,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger

Application: Communications, Industry/comsumer Electronic.

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. HSX Circuit provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. Its products covers 1~32L FR-4 PCB, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

Under the support of high-educated and experienced team and advanced production equipment, HSX Circuit has won great reputation from the global markets because of its professional services and high quality products.

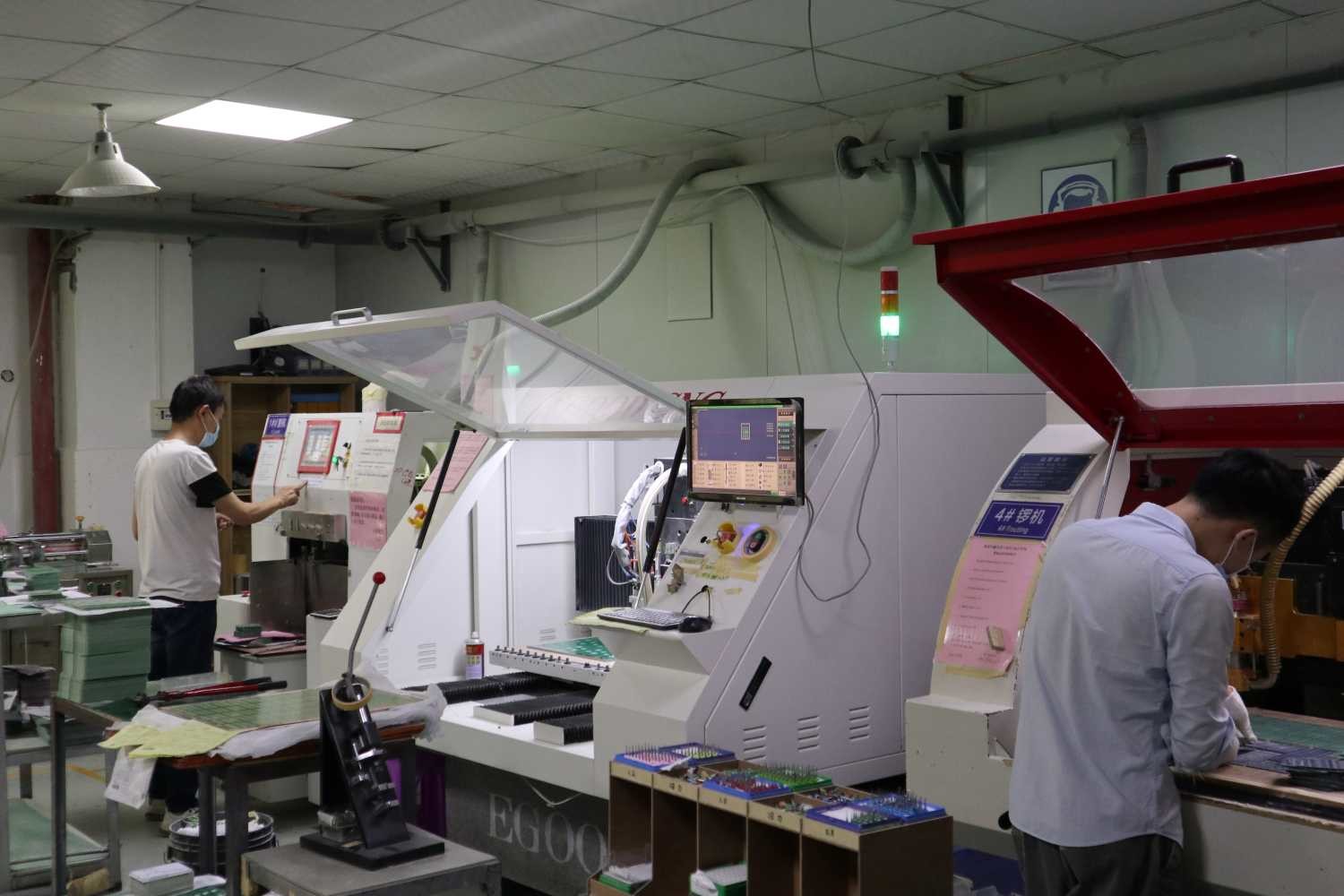

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
